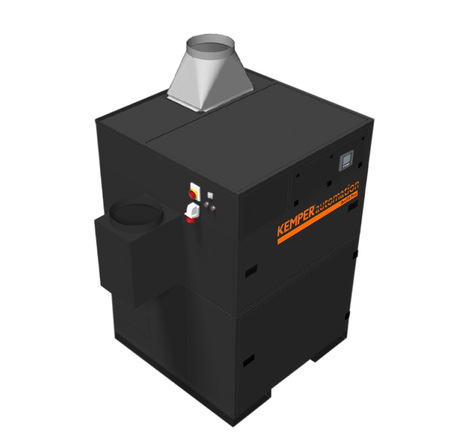

ArcFil Pro

Specifically suited for robot welding applications

The ArcFil Pro filter system of the Automation-Line can be set up and put into operation in just a few seconds thanks to its compact design. Thanks to the high and effective extraction capacity, it is particularly suitable for robot welding applications of various processes, such as laser welding. Thanks to the W3 certification (DIN EN ISO 21904) of the ArcFil Pro, it is possible to feed the filtered air directly back into the production hall, which makes it particularly energy efficient. The unit is connected directly to an extraction hood or cabin that covers the entire working area of the robot. This is essential to prevent the cutting fume from spreading into the production hall.

Product variants:

Price: Upon request
Art. No.
35 40
3540
Inquiry
Share this page
  • High levels of smoke and dust
  • Welding and grinding shops
  • Training centres and robotic welding lines
  • Laser, plasma and flame cutting systems
  • Can be installed outdoors
  • Contamination-free dust collection due to compressed air fixation of dust collection containers
  • Uninterrupted continuous operation due to automatic differential pressure-controlled filter cleaning
  • Little noise emission due to a low noise level
  • Considerable energy cost savings by using the automatic extraction volume control
  • Convenient operation due to intelligent control via touch screen with diagnostic system
  • Best health protection for employees by use of KemTex® ePTFE cartridges with surface filtration
  • Recirculation is possible even when using chrome-nickel steel thanks to W3 certification
  • Control via touch screen
  • KemTex® ePTFE filter cartridges
  • Automatic extraction volume control (optional)
  • Automatic filter cleaning on required basis
  • Control via compact touch information display
  • Low noise emissions thanks to extremely low noise level
  • Dosing unit for pre-coating the filter cartridges
  • Automatic extraction volume control
  • Fleet management, remote maintenance and pre-noise maintenance using autarkic networking via mobile radio to the KEMPER cloud
  • Spark separator – SparkTrap
  • Automatic start-stop
  • Weatherproof housing for outdoor installation
  • Various voltages
  • Various filter surfaces
  • Various volume flow rate capacities
Technical Data

Filter

Filter stages

1

Filter method

Cleanable filter

Filter surface

10 m²

Number filter elements

6

Filter surface total

60 m²

Type of filter

Filter cartridge

Filter material

ePTFE membrane

Dust classification

M

Basic data

Extraction capacity min.

2750 m³/h

Extraction capacity (max.)

3960 m³/h

Extraction capacity

2750 - 3960 m³/h

Air flow rate (max.)

5500 m³/h

Vacuum min.

2650 Pa

Vacuum

2650 - 1800 Pa

Working pressure in PA

1800 Pa

Dimensions (w x t x h)

1413 x 1413 x 2110 mm

Weight

630 kg

Motor power

4 kW

Power supply

3 x 400 V / 50 Hz

Rated current

7.8 A

Noise level

65 dB(A)

Additional information

Fan type

Radial fan, belt driven

Compressed air supply

5 - 6 bar

Air outlet

355 mm

Air intake

355 mm

Capacity Dust collection container

2 x 34 l

Dimensions

I

706 mm

J

225 mm

K

355 mm

L

1175 mm

N

484 mm

O

1347 mm
