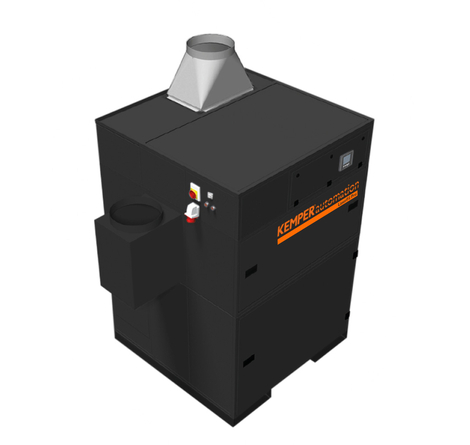

LaserFil Pro

Specifically suited for laser cutting processes

The LaserFil Pro filter system of the Automation-Line is supplied ready to use and can be set up and put into operation in just a few seconds thanks to its compact design. The particularly large filter surface is optimally adapted to the laser cutting process and enables an effective extraction capacity. Thanks to the W3 certification (DIN EN ISO 21904) of the LaserFil Pro, it is possible to feed the filtered air directly back into the production hall, which makes it particularly energy efficient. The unit is connected directly to a laser cabin that covers the entire working area. This is essential to prevent the cutting fume from spreading into the production hall.

Product variants:

Price: Upon request
Art. No.
37 30
3730
Inquiry
Share this page
  • High levels of smoke and dust
  • Welding and grinding shops
  • Training centres and robotic welding lines
  • Laser, plasma and flame cutting systems
  • Can be installed outdoors
  • Specifically suited for laser cutting processes
  • Contamination-free dust collection due to compressed air fixation of dust collection containers
  • Uninterrupted continuous operation due to automatic differential pressure-controlled filter cleaning
  • Little noise emission due to a low noise level
  • Considerable energy cost savings by using the automatic extraction volume control
  • Convenient operation due to intelligent control via touch screen with diagnostic system
  • Best health protection for employees by use of KemTex® ePTFE cartridges with surface filtration
  • Recirculation is possible even when using chrome-nickel steel thanks to W3 certification
  • KemTex® ePTFE filter cartridges
  • Automatic filter cleaning on required basis
  • Highly effective and uniform filter cleaning by means of rotary nozzle
  • Control via compact touch information display
  • Low noise emissions thanks to extremely low noise level
  • Quick and easy installation thanks to user-friendly preparation
  • Low space requirement due to compact design
  • Dosing unit for pre-coating the filter cartridges
  • Automatic extraction volume control
  • Fleet management, remote maintenance and pre-noise maintenance using autarkic networking via mobile radio to the KEMPER cloud
  • Spark separator – SparkTrap
  • Automatic start-stop
  • Weatherproof housing for outdoor installation
  • Various voltages
  • Various filter surfaces
  • Various volume flow rate capacities
Technical Data

Filter

Filter stages

1

Filter method

Cleanable filter

Filter surface

10 m²

Number filter elements

6

Filter surface total

60 m²

Type of filter

Filter cartridge

Filter material

ePTFE membrane

Dust classification

M

Basic data

Extraction capacity min.

2000 m³/h

Extraction capacity (max.)

2880 m³/h

Extraction capacity

2000 - 2880 m³/h

Vacuum min.

2450 Pa

Vacuum

2450 - 1750 Pa

Working pressure in PA

1750 Pa

Dimensions (w x t x h)

1413 x 1413 x 2110 mm

Weight

630 kg

Motor power

3 kW

Power supply

3 x 400 V / 50 Hz

Rated current

6.5 A

Noise level

65 dB(A)

Additional information

IFA-Certification

W3-Approved

Fan type

Radial fan, belt driven

Compressed air supply

5 - 6 bar

Air outlet

355 mm

Air intake

355 mm

Capacity Dust collection container

2 x 34 l

Dimensions

I

706 mm

J

225 mm

K

355 mm

L

1175 mm

N

484 mm

O

1347 mm
