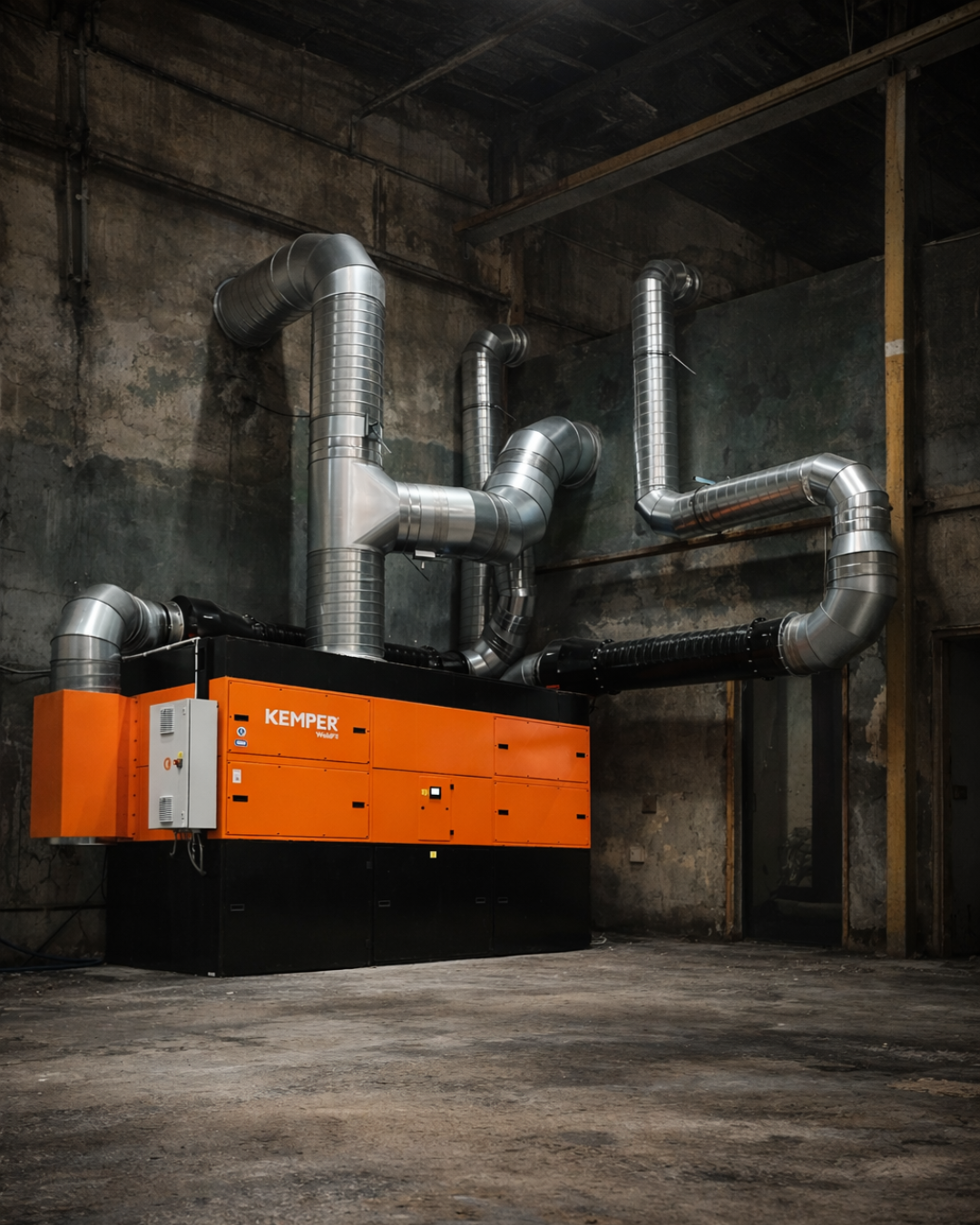

Welding Fume Extraction Unit WeldFil
Welding smoke extraction unit - with maximum capacity for many workstations and different applications
- High levels of smoke and dust
- Training centres and robotic welding lines
- Laser, plasma and flame cutting systems
- Can be installed outdoors
- Welding and grinding shops
Price on request

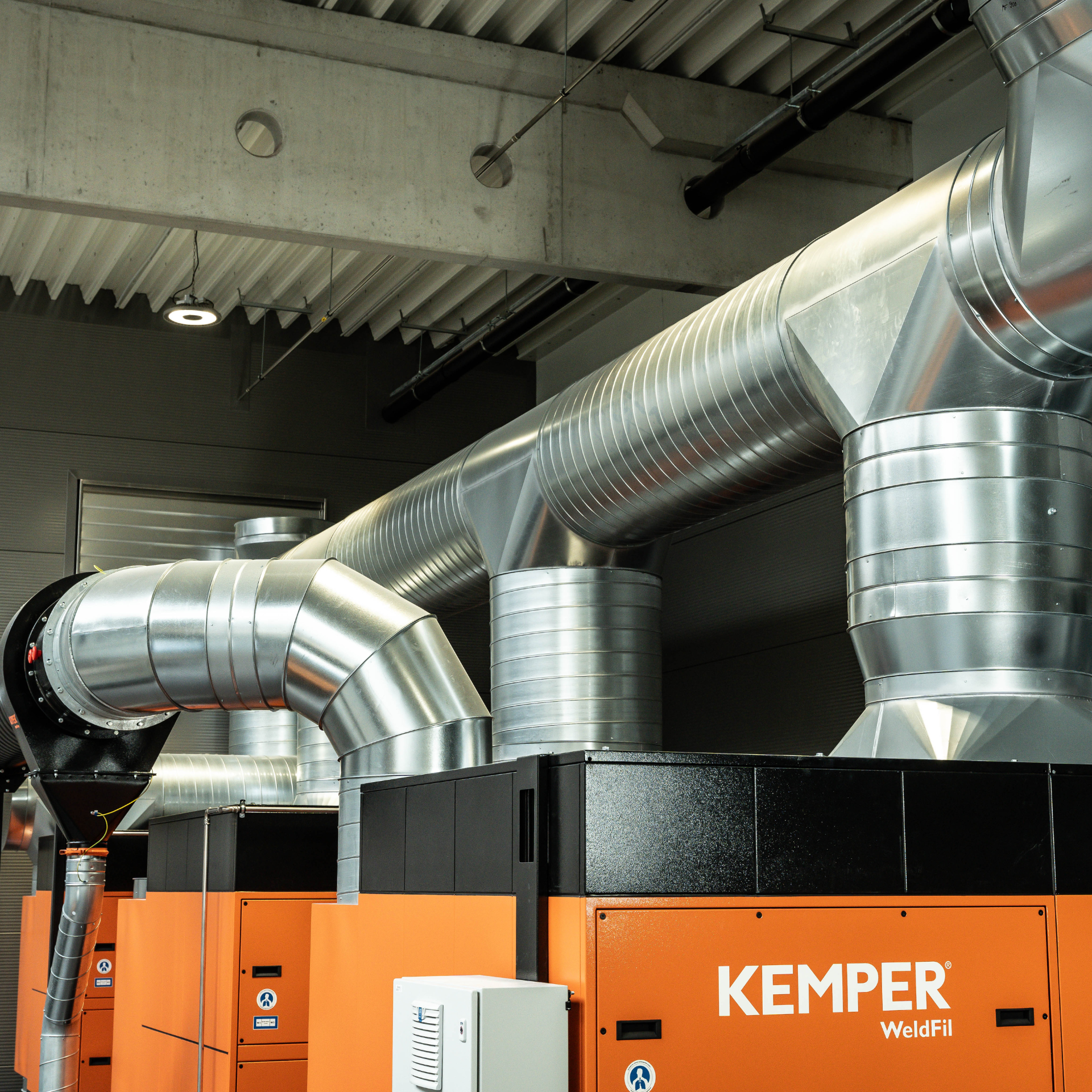

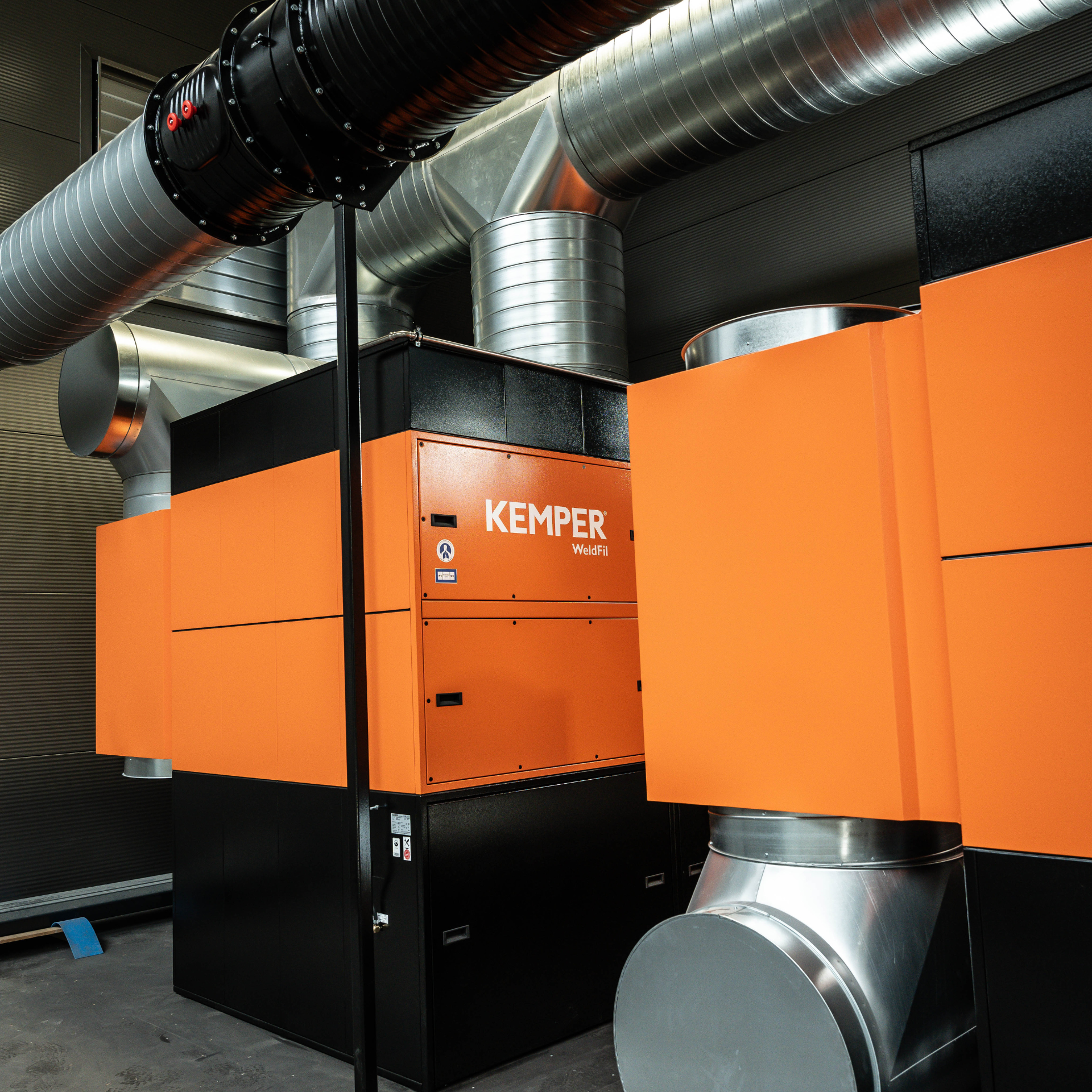

Robust, reliable and solid - the central extraction and filter WeldFil for high levels of smoke and dust. Ideally suited for large welding shops, training centres or for connecting to cutting machines. The KemTex® ePTFE membrane filter cartridges for ultra-fine dust particles separate particles even below 0.1 µm. If your requirements change, the system can grow flexibly by means of modular extensions.
For large systems and many workstations – efficient, quiet and expandable. The highlights at a glance:
- Contamination-free dust collection due to compressed air fixation of dust collection containers
- Uninterrupted continuous operation due to automatic differential pressure-controlled filter cleaning
- Little noise emission due to a low noise level

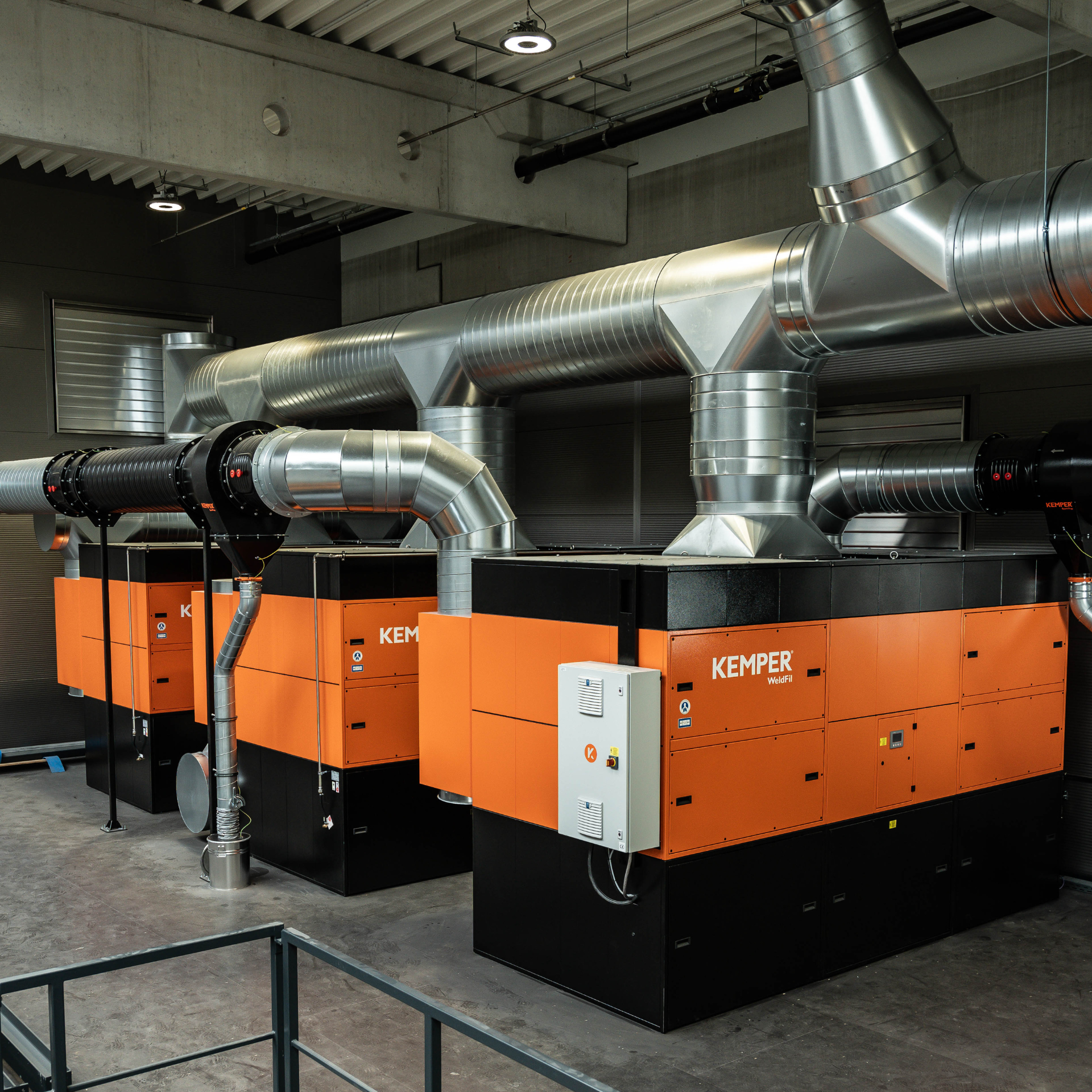

- Expandable due to simple modular construction
- Considerable energy cost savings by using the automatic extraction volume control
- Convenient operation due to intelligent control via touch screen with diagnostic system
- Flexible integration of the control system into third-party systems such as cutting equipment due to potential-free contacts
- Best health protection for employees by use of KemTex® ePTFE cartridges with surface filtration
| Technical data | |
|---|---|
| Dimensions | |
| Weight in lbs: | 5335 |
| Dimensions (depth) in inches: | 73 |
| Dimensions (width) in inches: | 167 |
| Dimensions (height) in inches: | 105 |
| Filter | |
| Filter stages: | 1 |
| Filter area in ft²: | 215 |
| Number of filter elements: | 18 |
| Total filter area in ft²: | 3875 |
| Separation efficiency ≥: | 99.9 |
| Connections | |
| Air inlet in inches: | 56 |
| Air outlet in inches: | 35 |
| Technology | |
| Motor power in hp: | 30 |
| Rated current in A: | 40 |
| Sound pressure level in dB(A): | 65 |
