WallMaster Welding Smoke Filter
Item No.:
65750
Cost-effective welding fume filter solution for modular installation
- Medium levels of smoke and dust
- Modular extensionin combination with capturing elements
- One or two workplaces
Price on request
Cost-effective welding fume filtration solution for modular system design

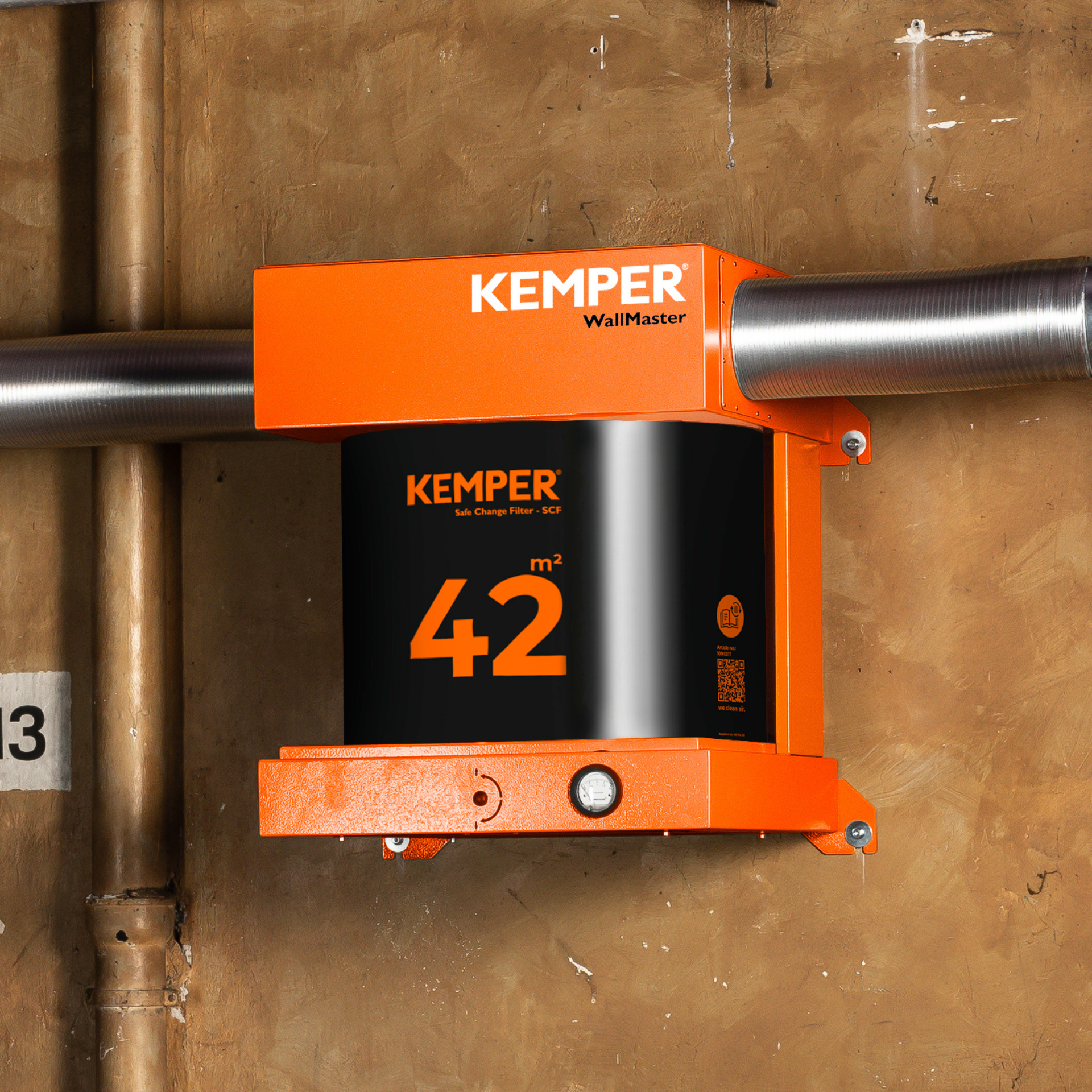

The wall-mounted welding fume filtration system Wallmaster is a cost-effective filter solution for the modular setup of extraction systems. The filter medium integrated in a compact housing can be easily combined with both new and existing extraction elements. The SafeChangeFilter from KEMPER enables contamination-free filter changes, which also has a particularly high filter surface area of 452 sq ft.
Contamination-free filter replacement with large filter surface
Safe, flexible and ideal for retrofitting. The highlights at a glance:
- Increased safety with safe filter change
- Very economic due to long lasting high capacity filters
- Inexpensive welding smoke filter for retrofitting of existing capturing elements
- Robust filter monitoring by means of pressure gauge
- Integrated lifting device for filter change
- Easy and quick installation
| Technical data | |
|---|---|
| Dimensions | |
| Weight in lbs: | 143 |
| Dimensions (depth) in inches: | 28 |
| Dimensions (width) in inches: | 30 |
| Dimensions (height) in inches: | 31 |
| Filter | |
| Filter stages: | 2 |
| Filter area in ft²: | 452 |
| Separation efficiency ≥: | 99.5 |
| Performance | |
| Suitable for volume flows up to (in cfm): | 942 |
Wear parts
Replacement filter 42 m²
$0.00*
The KEMPER original storage filter is suitable for the MaxiFil (mobile and stationary), SmartFil and WallMaster units. The XXL filter surface of 42 m² of the roll filter offers the highest welding fume separation with the lowest energy consumption. The filter class is E12 with a separation efficiency ≥ 99.9 %. Important note: When using original filters, you are on the safer side and act in a legally compliant manner, as this means that the IFA W3 certification and the warranty of your unit remain intact and valid.
