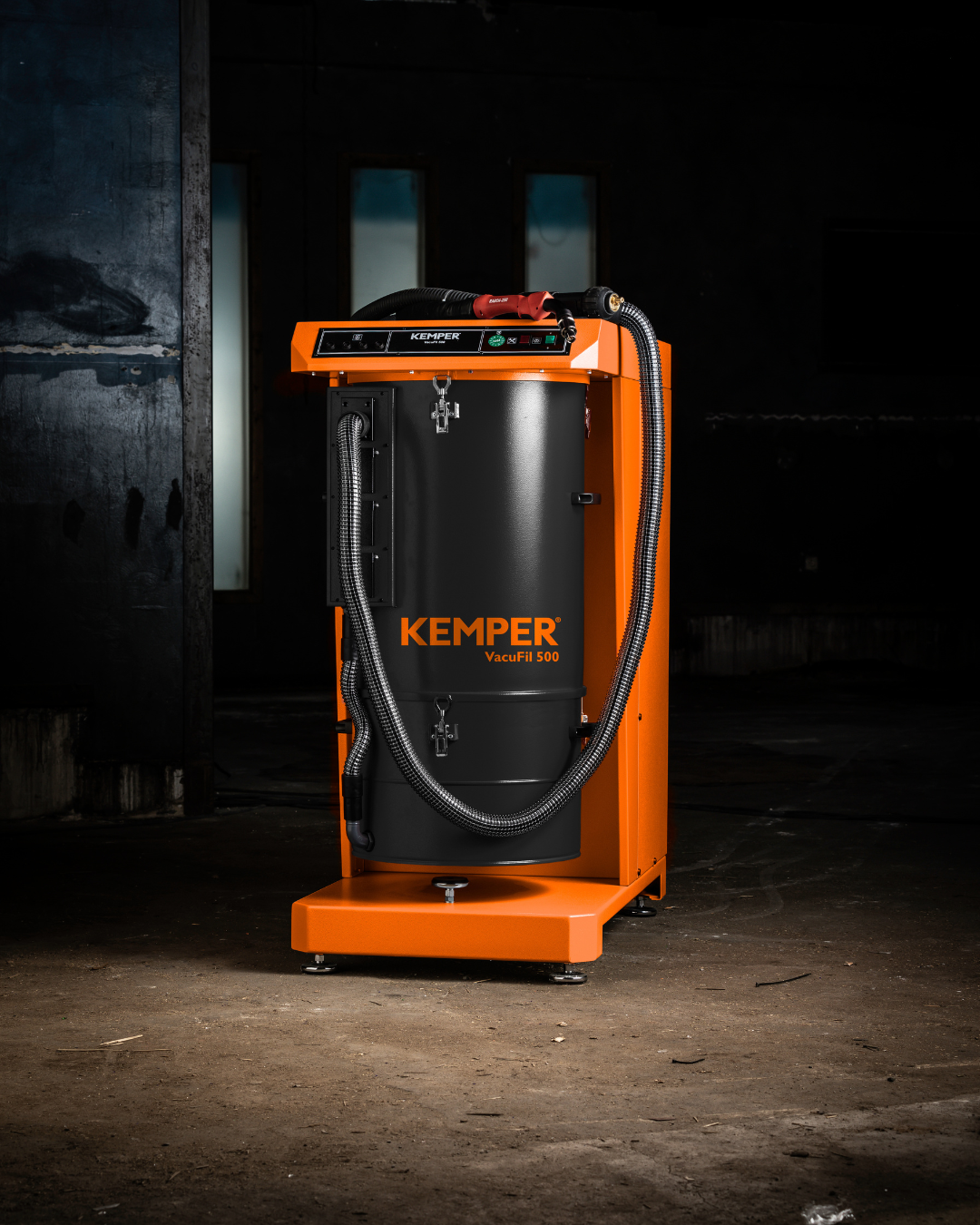

VacuFil 500
High vacuum welding smoke extraction unit for up to four workstations
- High levels of smoke and particles
- Non-stop operation
- Torch extraction, robot extraction

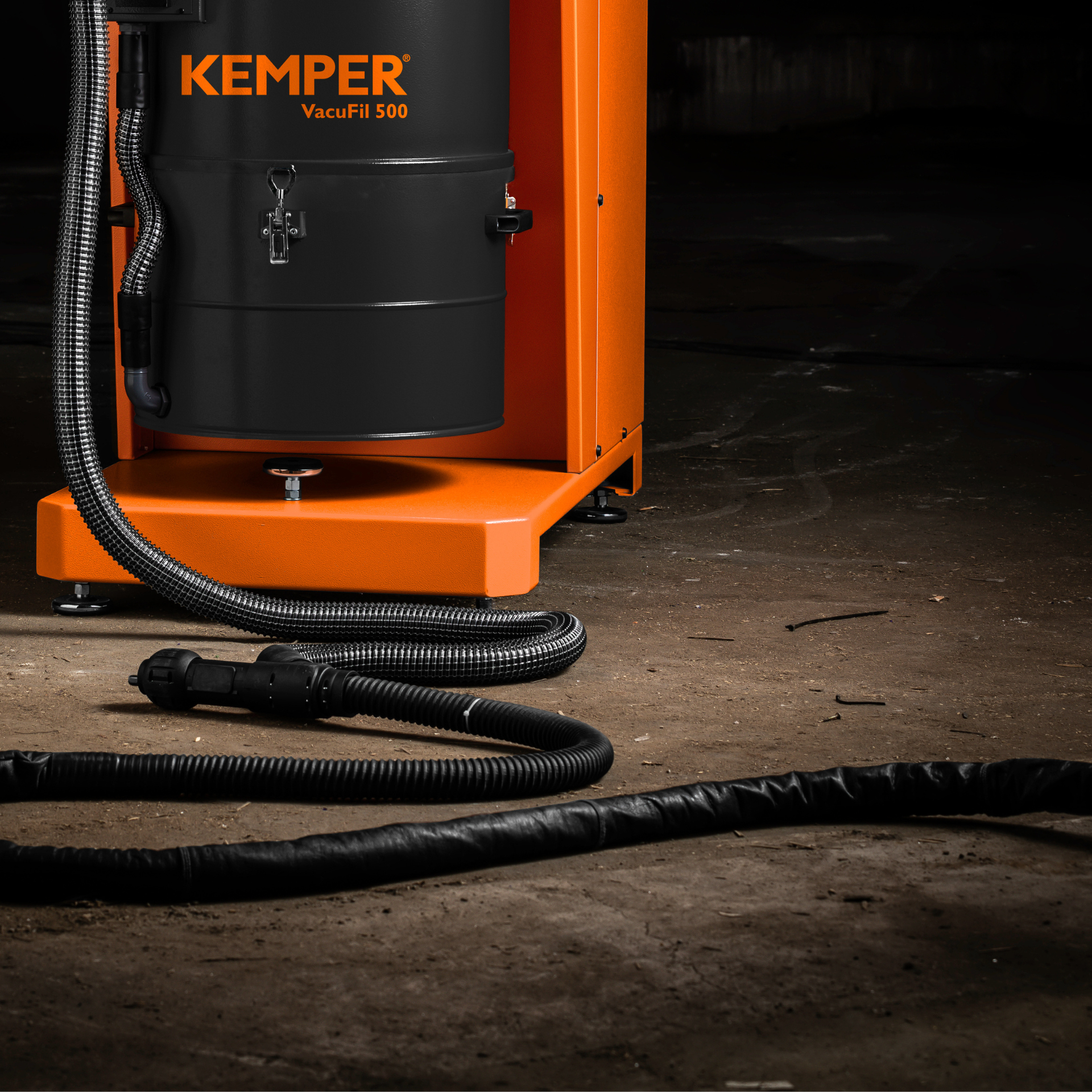

- Suction nozzles or high vacuum exhaust arms
Price on request
The high-vacuum suction and welding smoke extraction filter unit VacuFil 500 for high levels of smoke and dust is ideal for non-stop operation due to automatic filter cleaning. A side channel compressor to create negative pressure ensures robust performance for industrial users. In addition to up to four individual work station it can also be connected to a central pipe system.
Cost-effective, flexible and reliable – for maximum system availability in industrial applications. The following advantages at a glance:
- High efficiency due to automatic filter cleaning
- Best health protection for employees by use of KemTex® ePTFE filter cartridges with surface filtration

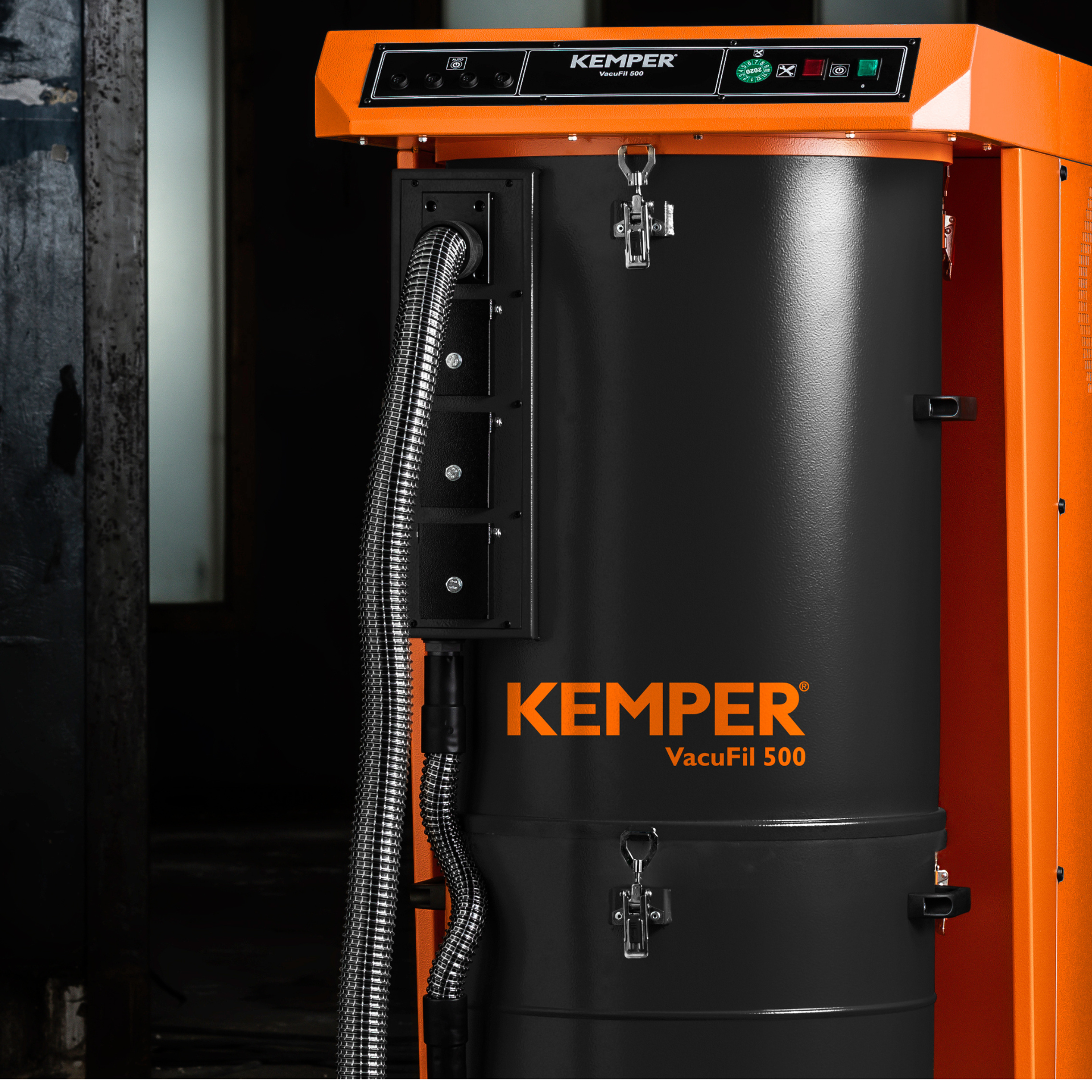

- Great flexibility in version with four separate connections
- Uninterrupted continuous operation due to automatically controlled filter cleaning
| Technical data | |
|---|---|
| Filter | |
| Filter stages: | 1 |
| Separation efficiency ≥: | 99.9 |
| Filter area in ft²: | 108 |
| Technology | |
| Rated current in A: | 12.9 |
| Sound pressure level in dB(A): | 74 |
| Motor power in hp: | 7.4 |
| Dimensions | |
| Weight in lbs: | 595 |
| Dimensions (depth) in inches: | 47 |
| Dimensions (width) in inches: | 26 |
| Dimensions (height) in inches: | 54 |
