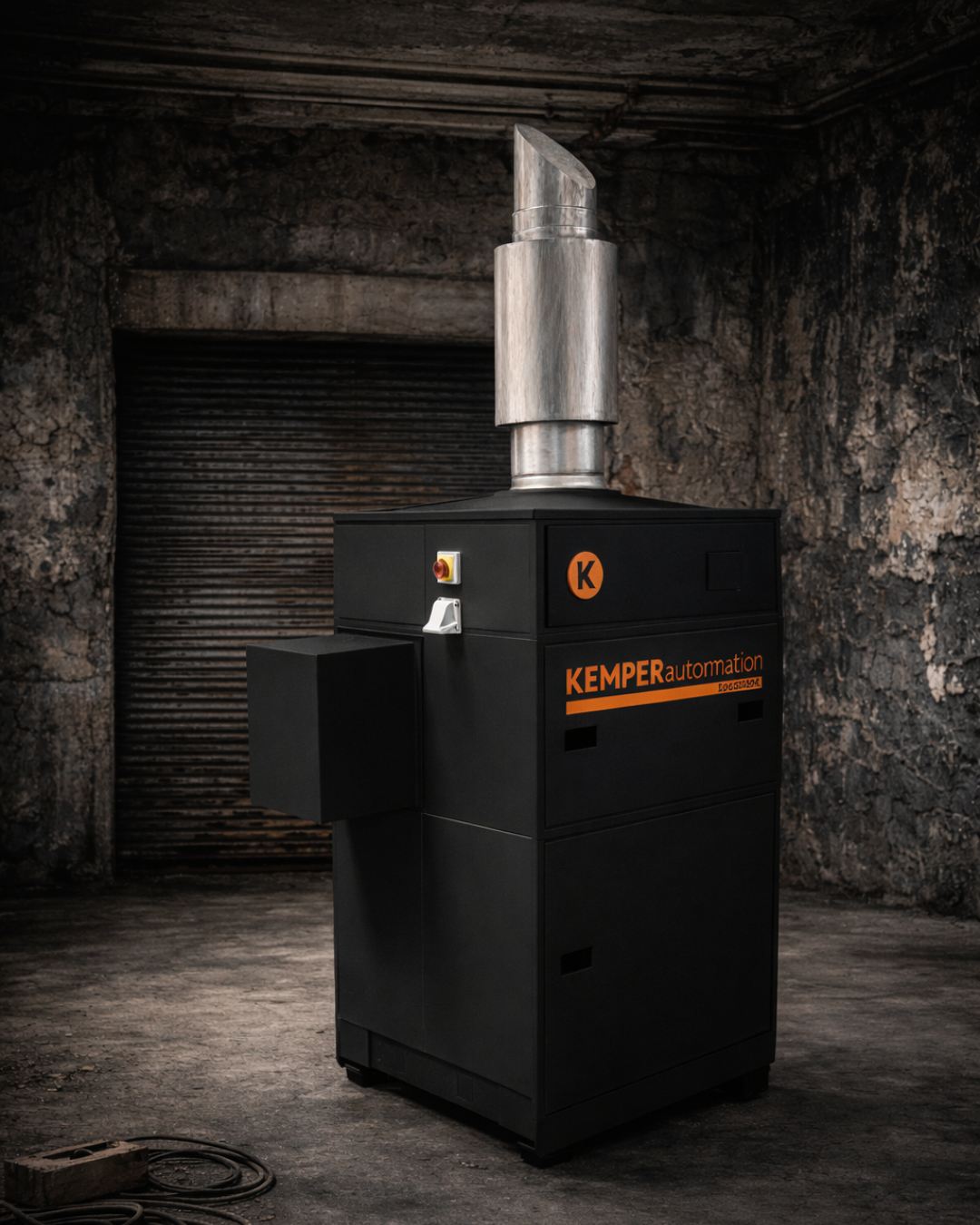

LaserFil Pro
Specifically suited for laser cutting processes
- High levels of smoke and dust
- Welding and grinding shops
- Training centres and robotic welding lines
- Laser, plasma and flame cutting systems
- Can be installed outdoors
- Specifically suited for laser cutting processes
Price on request

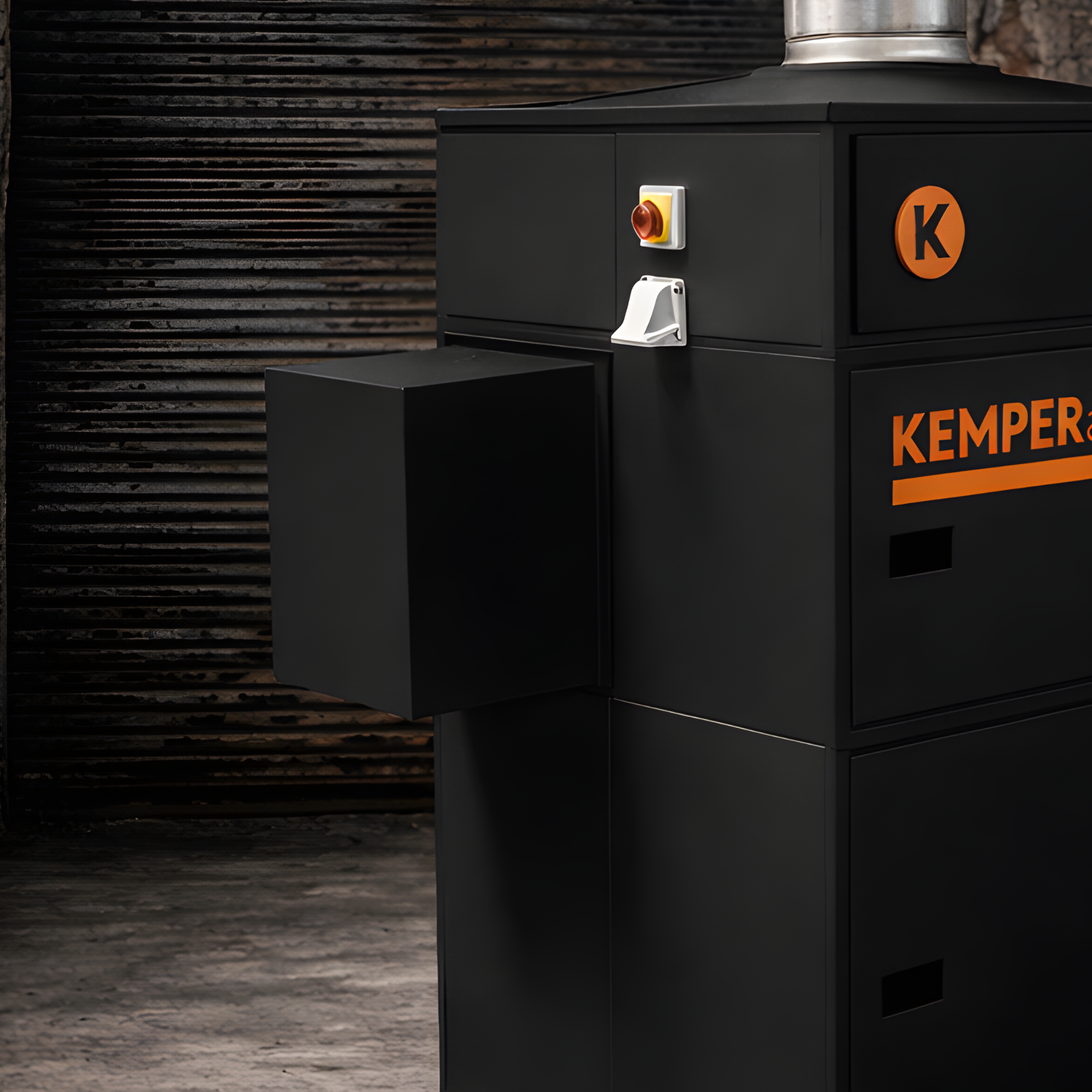

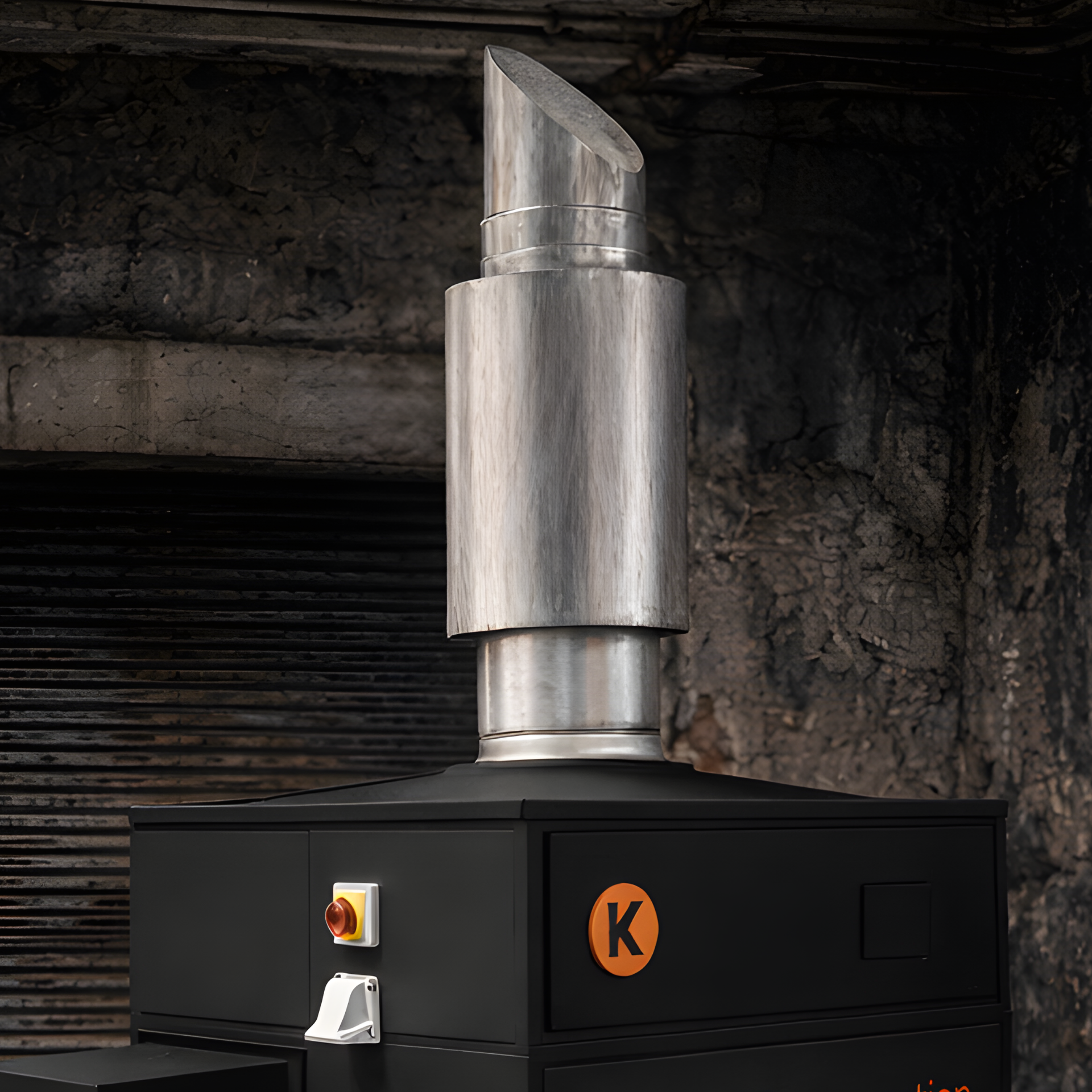

The LaserFil Pro filter system of the Automation-Line is supplied ready to use and can be set up and put into operation in just a few seconds thanks to its compact design. The particularly large filter surface is optimally adapted to the laser cutting process and enables an effective extraction capacity. Thanks to the W3 certification (DIN EN ISO 21904) of the LaserFil Pro, it is possible to feed the filtered air directly back into the production hall, which makes it particularly energy efficient. The unit is connected directly to a laser cabin that covers the entire working area. This is essential to prevent the cutting fume from spreading into the production hall.
Powerful, efficient, and safe – for maximum system uptime and optimal health protection. Key benefits at a glance:
- Contamination-free dust collection due to compressed air fixation of dust collection containers
- Uninterrupted continuous operation due to automatic differential pressure-controlled filter cleaning
- Little noise emission due to a low noise level
- Considerable energy cost savings by using the automatic extraction volume control
- Convenient operation due to intelligent control via touch screen with diagnostic system
- Best health protection for employees by use of KemTex® ePTFE cartridges with surface filtration
- Recirculation is possible even when using chrome-nickel steel thanks to W3 certification
| Technical data | |
|---|---|
| Filter | |
| Filter stages: | 1 |
| Number of filter elements: | 4 |
| Separation efficiency ≥: | 99.9 |
| Filter area in ft²: | 108 |
| Total filter area in ft²: | 431 |
| Technology | |
| Motor power in hp: | 4 |
| Sound pressure level in dB(A): | 65 |
| Rated current in A: | 6.5 |
| Performance | |
| Extraction capacity in cfm: | 3 |
| Dimensions | |
| Weight in lbs: | 926 |
| Dimensions (depth) in inches: | 38 |
| Dimensions (width) in inches: | 38 |
| Dimensions (height) in inches: | 83 |
| Connections | |
| Air inlet in inches: | 10 |
| Air outlet in inches: | 10 |
