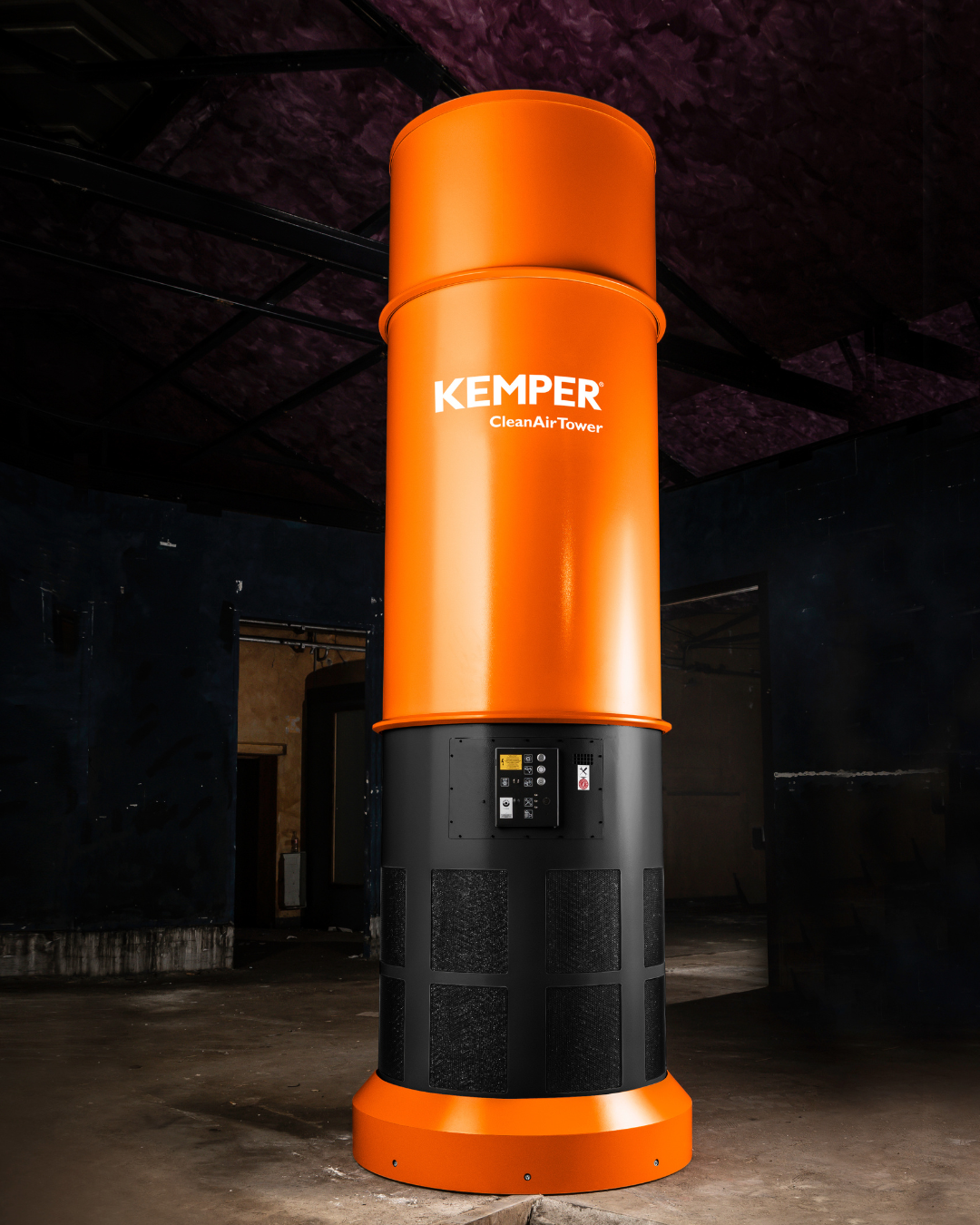

CleanAirTower General Ventilation
Energy-saving indoor ventilation system
- Workshops where local exhaust ventilation is not possible
- To complement local exhaust ventilation systems
- Environments with changing sources of smoke and dust
- Workstations, Workshops, Logistic and distribution centres
Price on request
The ventilation system CleanAirTower is used wherever local extraction does not work or is insufficient. It effectively protects employees and machines from fine dust. The purified air is recirculated. The device hardly creates any air turbulence, ensuring that no dust is distributed into clean areas. The CleanAirTower functions according to the displacement ventilation principle recommended by health and safety bodies.
Greater safety, greater efficiency, greater control – a solution that intelligently combines technology and cost-effectiveness. Reduce risks and costs sustainably and benefit from maximum flexibility in day-to-day operations. All benefits at a glance:
- Low risk potential due to foreign bodies
- Effective energy reduction of possible sparks and particles by the pinball method with 7 or more collision points
- Effective efficiency through tornado principle
- Minimization of heating costs due to air recirculation and air distribution
- Enormously long filter lifetime due to optimised air flow
- Increased safety with contamination-free dust disposal
- Cost-effective installation or retrofit, as no ductwork is needed
- New head element can be retrofitted to existing systems
- Safe transportation and easy installation by crane eyes
- Permanent operation by means of automatic dust disposal in dust collection bin
| Technical data | |
|---|---|
| Dimensions | |
| Weight in lbs: | 1468 |
| Dimensions (height) in inches: | 142 |
| Filter | |
| Filter stages: | 1 |
| Filter area in ft²: | 215 |
| Number of filter elements: | 3 |
| Total filter area in ft²: | 646 |
| Separation efficiency ≥: | 99.9 |
| Connections | |
| Diameter in inches: | 46 |
| Technology | |
| Motor power in hp: | 7.4 |
| Rated current in A: | 11 |
| Sound pressure level in dB(A): | 72 |
| Performance | |
| Max. fan capacity in cfm: | 6356 |
| Extraction capacity in cfm: | 3531 |
| Min. negative pressure in inch WC: | 9 |
