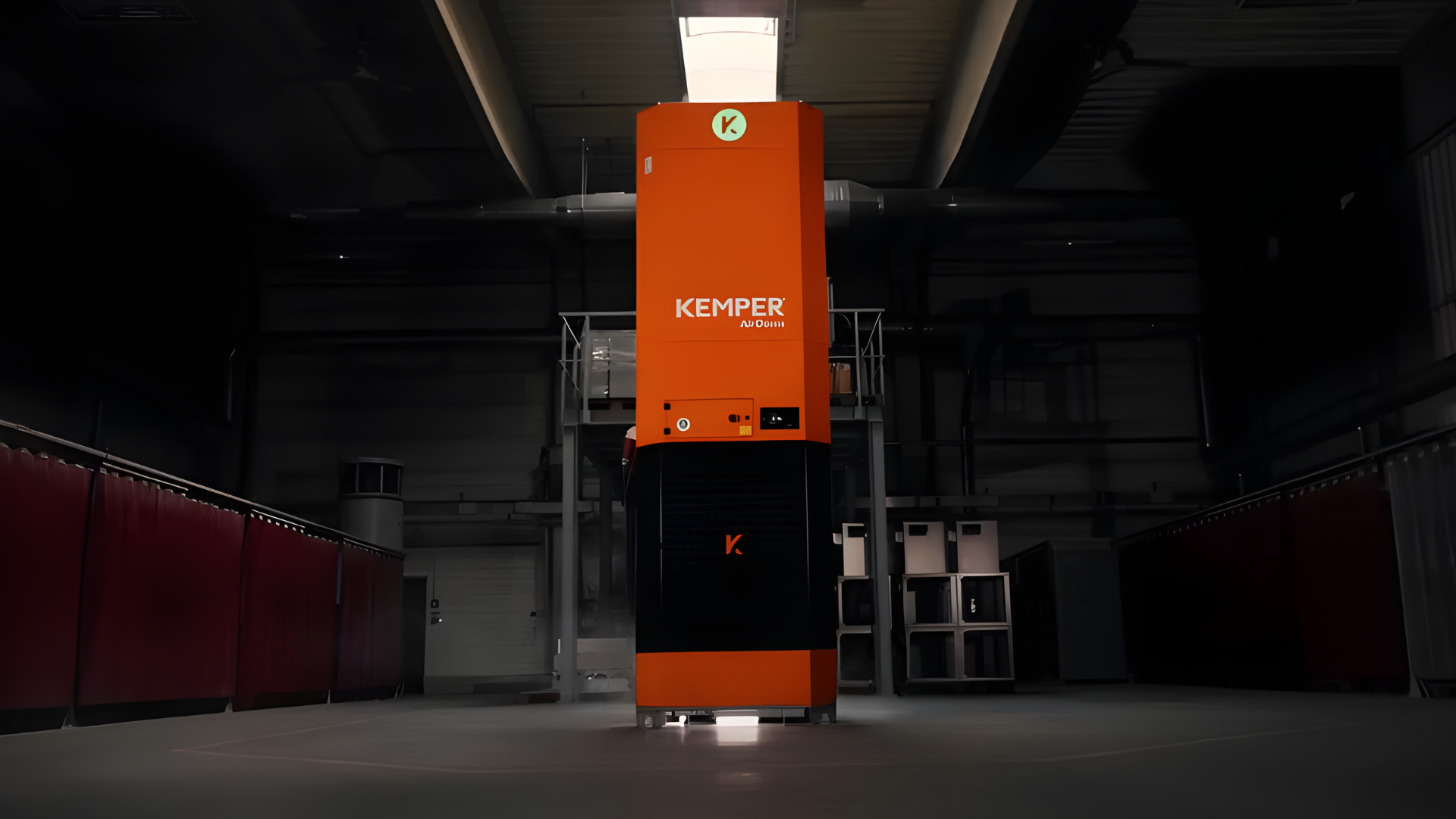

AirDome
Stationary hall ventilation with 20,000 m³/h airflow – ideal for permanent use in air domes and inflatable halls
- Workshops where local exhaust ventilation is not possible
- To complement local exhaust ventilation systems
- Environments with changing sources of smoke and dust
- Workstations, Workshops, Logistic and distribution centres
- Energy-saving general ventilation
Price on request

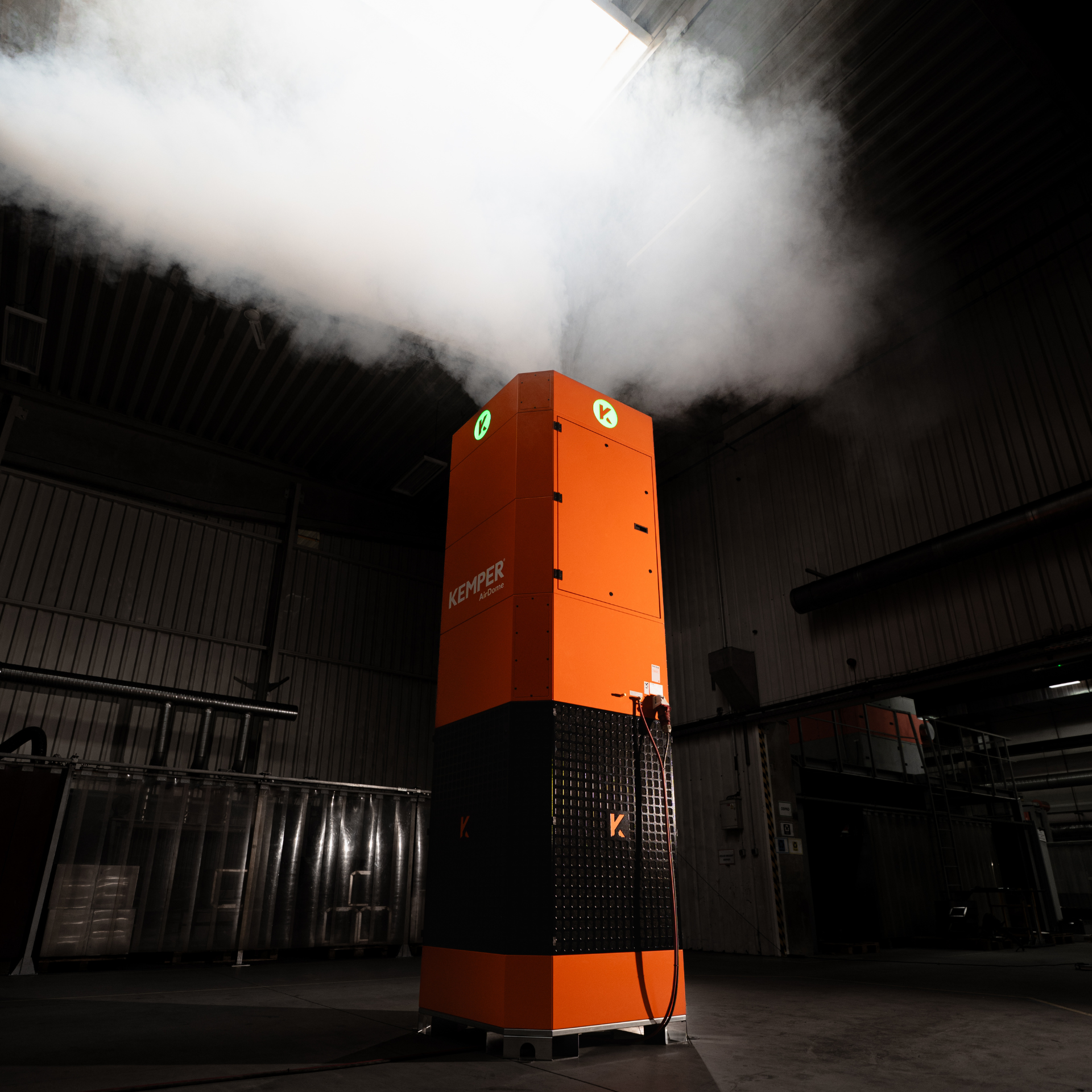

The AirDome ensures clean air in production facilities and workshops with changing dust and fume sources – ideal where point extraction is not sufficient. As a space-saving powerhouse, it delivers an extreme extraction capacity of 11,771 CFM on just 16.15 sq ft of floor space. With automatic filter cleaning and modern EC technology, it operates energy-efficiently, quietly, and with minimal maintenance. Thanks to displacement ventilation in line with safety authority recommendations, optimized airflow, 360° air outlet, and contamination-free dust disposal, the tower reliably protects both people and machines – with minimal footprint and no need for ducting.
Maximum performance, minimal operating costs – developed for clean workshop air at the highest level. Innovative technology meets sophisticated design – the benefits at a glance:
- State-of-the-art EC technology adapts to demand and therefore runs particularly energy-efficiently - saves operating costs and protects the environment
- Optimum capture height - extraction takes place at the exact height at which the welding fumes accumulate
- Space-saving, innovative design - minimum footprint with maximum performance
- Status check via large illuminated display (optional) - For easy monitoring of the operating status
- A space-saving miracle with an extreme 20,000 m³/h extraction capacity on a 1.5 m² footprint
- Extremely easy to maintain thanks to maintenance-free fans and convenient access thanks to the large maintenance door
- Extremely high volume flow - ideal for demanding applications
- Low risk potential due to foreign bodies
- Constant air flow guarantees a constant level of clean air

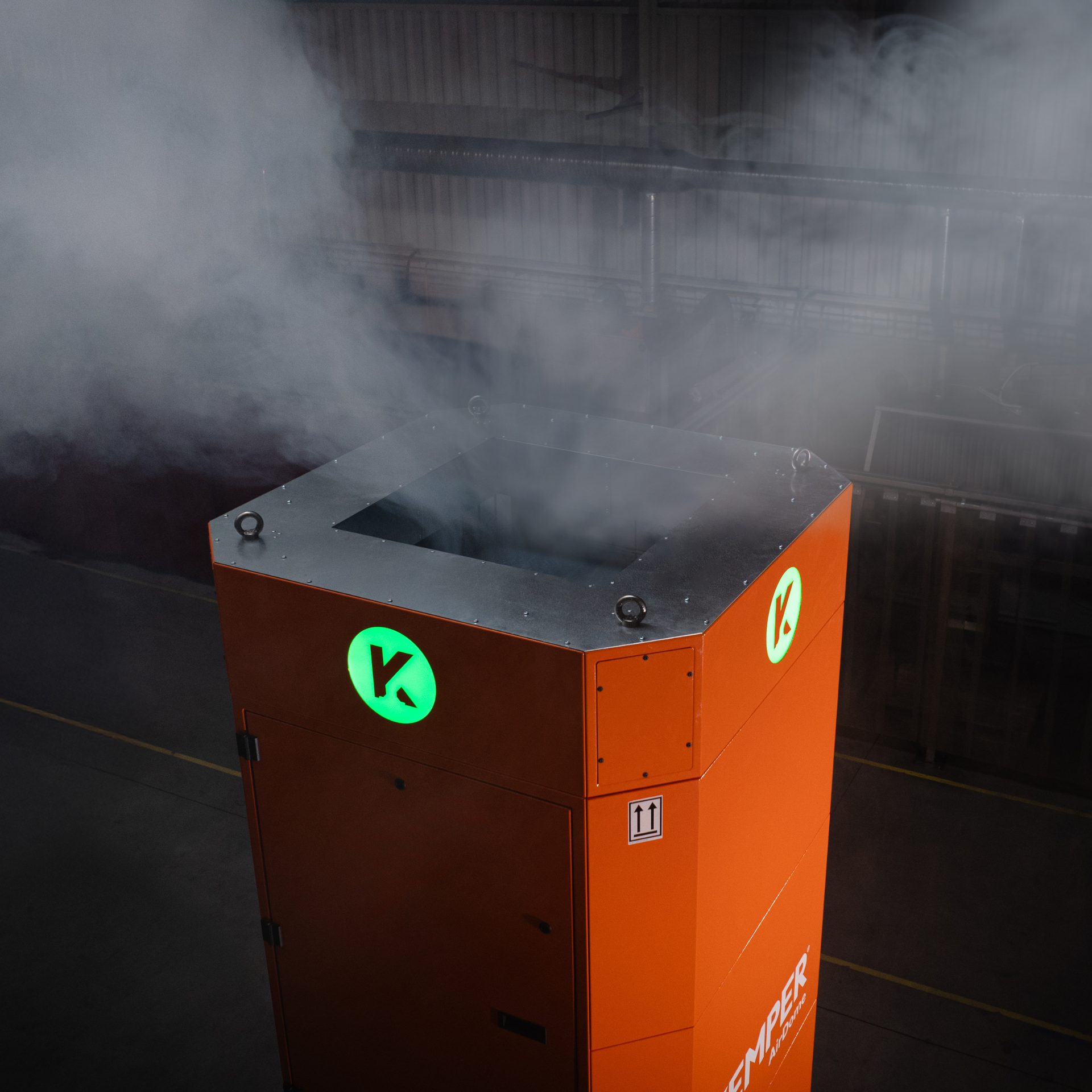

- Safe transport and easy installation thanks to lifting eyes & forklift pockets
- Minimization of heating costs due to air recirculation and air distribution
- Enormously long filter lifetime due to optimised air flow

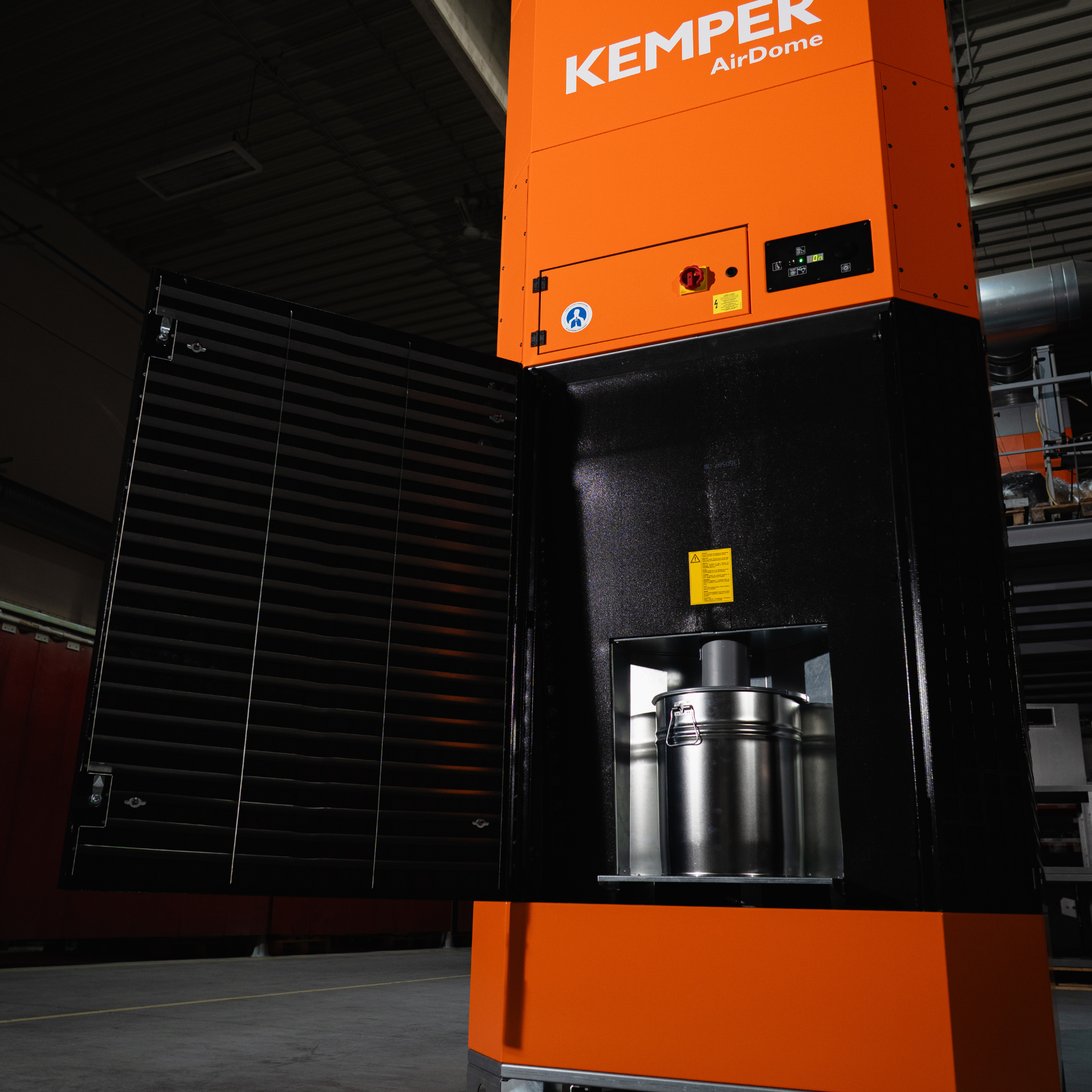

- Increased safety with contamination-free dust disposal
- Cost-effective installation or retrofit, as no ductwork is needed
- Permanent operation by means of automatic dust disposal in dust collection bin
| Technical data | |
|---|---|
| Dimensions | |
| Weight in lbs: | 1929 |
| Dimensions (depth) in inches: | 49 |
| Dimensions (width) in inches: | 49 |
| Dimensions (height) in inches: | 159 |
| Filter | |
| Filter stages: | 1 |
| Filter area in ft²: | 323 |
| Number of filter elements: | 6 |
| Total filter area in ft²: | 1938 |
| Separation efficiency ≥: | 99.9 |
| Technology | |
| Motor power in hp: | 20.6 |
| Rated current in A: | 23.5 |
| Sound pressure level in dB(A): | 72 |
| Performance | |
| Max. fan capacity in cfm: | 16480 |
| Extraction capacity from ... to in cfm: | 11770, 4709 |
